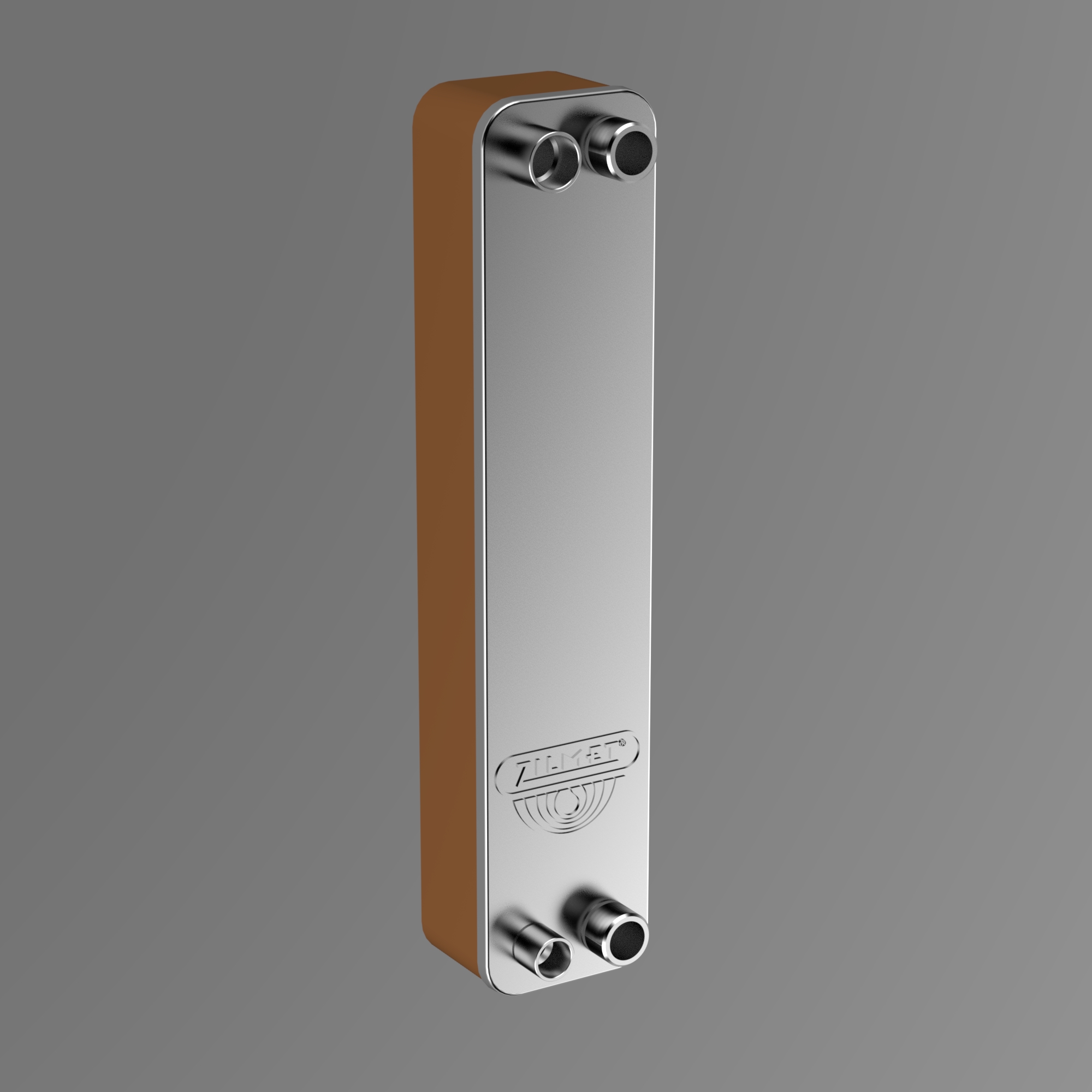

ZC-ZE 500

Technical features
Maximum operating pressure 30 – 45 bars
Maximum operating temperature-50°C / +200°C
Plate materialAISI 316 L stainless steel
Fittings materialAISI 316 L stainless steel
Water side fittingsG1
Freon side fittingsØ 16 – 28.7 mm
Brazing materialCopper 99.9%
Number of plates10 – 80
Measurements and weights
Length526 mm
Greater wheelbase466 mm
Smaller wheelbase50 mm
Height(9 + 2.25 x N) mm*
Weight(2.12 + 0.225 x N) Kg*

*Data subject to tolerance.
