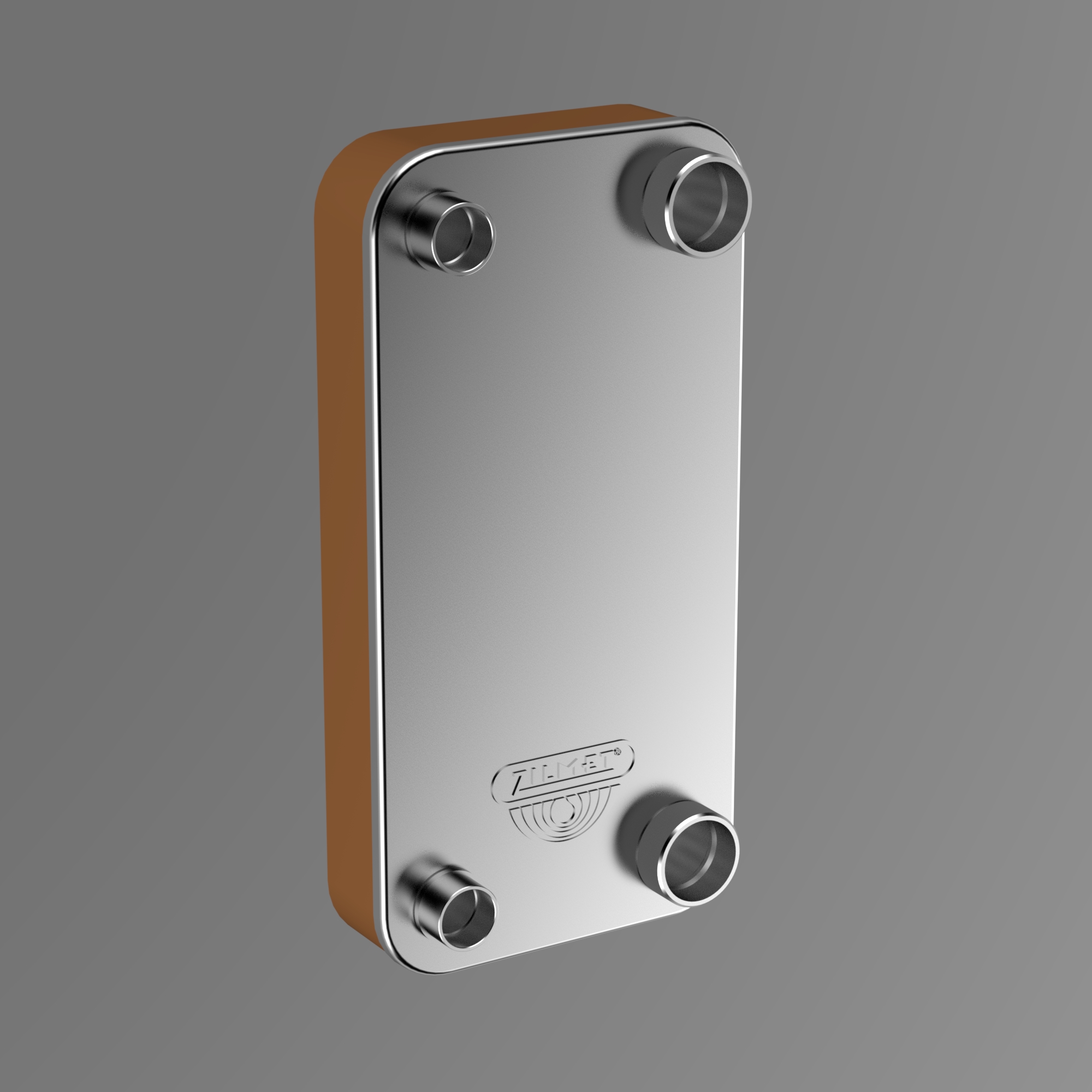

ZC-ZE 450

Technical features
Maximum operating pressure 30 – 45 bars
Maximum operating temperature-50°C / +200°C
Plate materialAISI 316 L stainless steel
Fittings materialAISI 316 L stainless steel
Water side fittingsG2
Freon side fittingsØ 28.7 – 35 mm
Brazing materialCopper 99.9%
Number of plates10 – 80
Measurements and weights
Length487 mm
Greater wheelbase395 mm
Length247 mm
Smaller wheelbase160 mm
Height(9 + 1.95 x N) mm*
Weight(4.16 + 0.447 x N) Kg*

*Data subject to tolerance.
