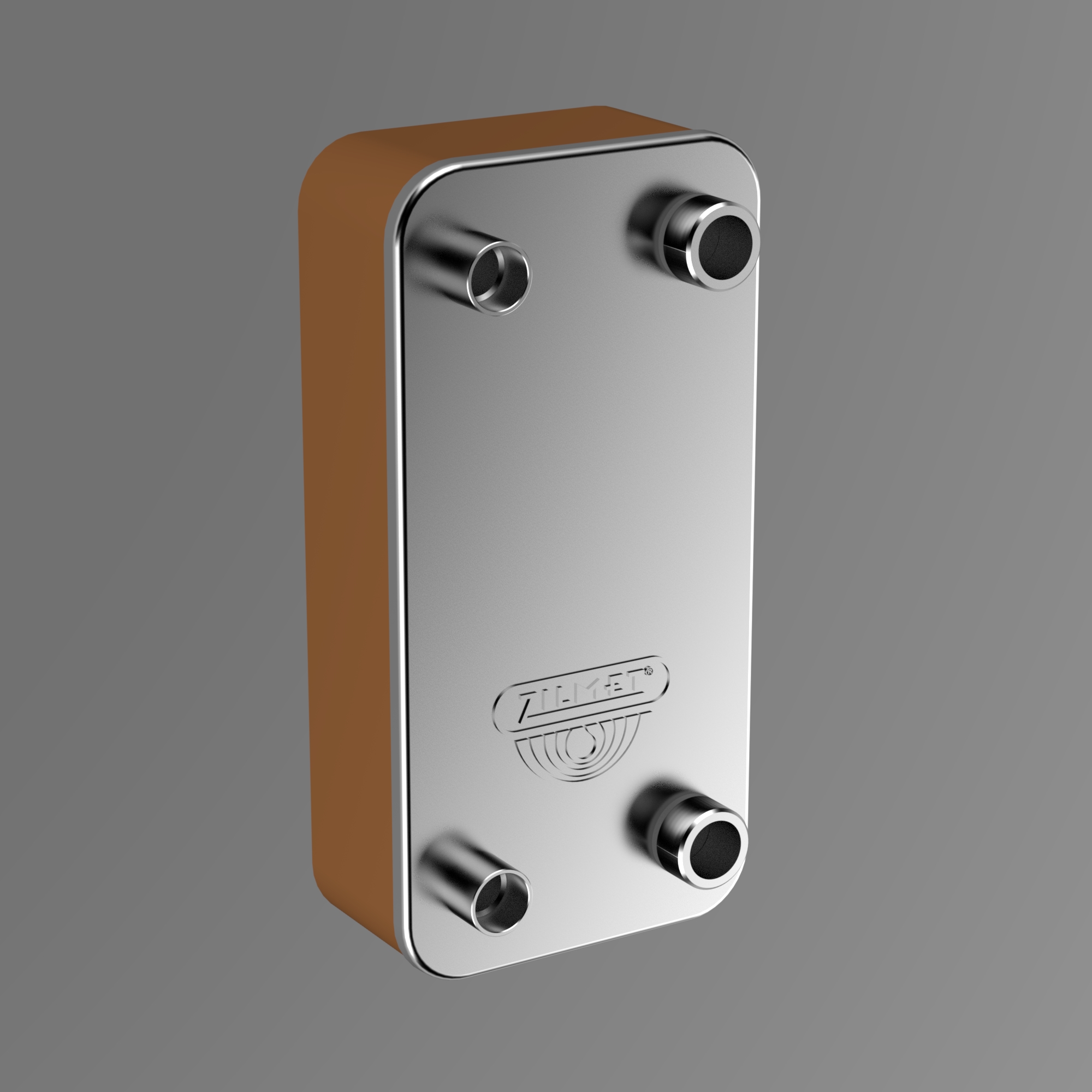

ZC-ZE 400

Technical features
Maximum operating pressure 30 – 45 bars
Maximum operating temperature-50°C / +200°C
Plate materialAISI 316 L stainless steel
Fittings materialAISI 316 L stainless steel
Water side fittingsG1 1/4
Freon side fittingsØ 22.4 – 28.7 mm
Brazing materialCopper 99.9%
Number of plates10 – 80
Measurements and weights
Length390 mm
Greater wheelbase296mm
Length195mm
Smaller wheelbase120 mm
Height(9 + 2.1 x N) mm*
Weight(2.82 + 0.286 x N) Kg*

*Data subject to tolerance.
