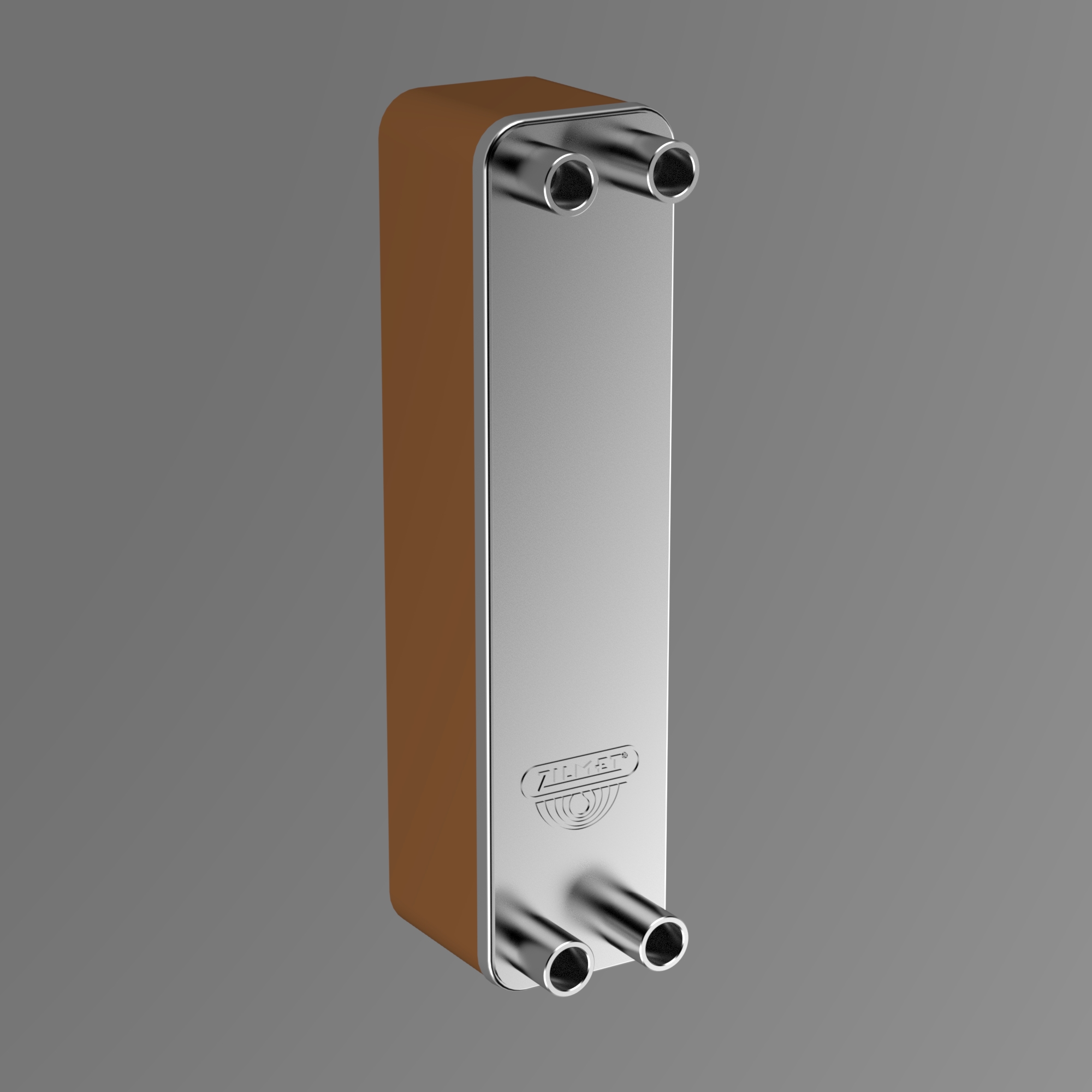

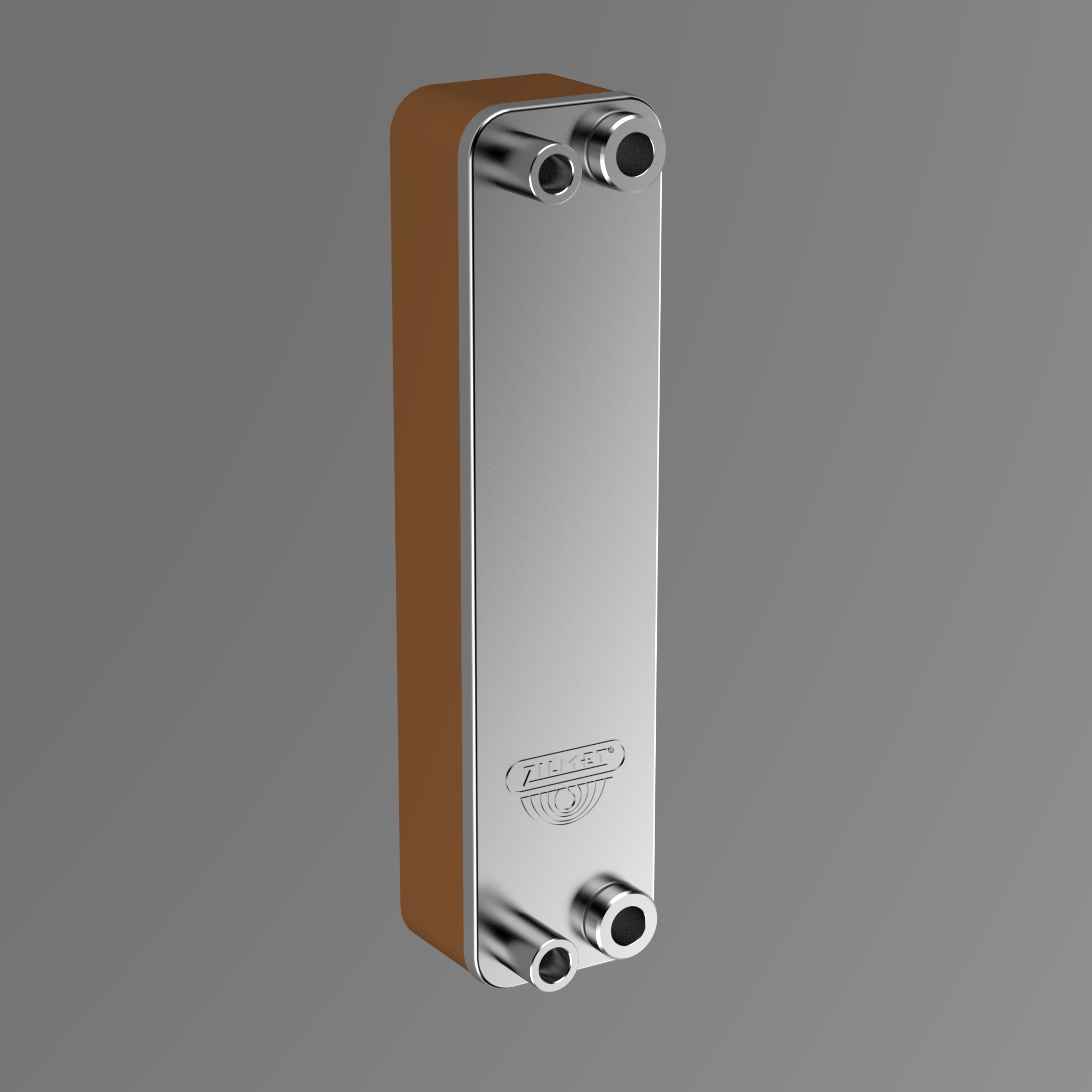

ZC-ZE 315

Technical features
Maximum operating pressure 30 bars
Maximum operating temperature-50°C / +200°C
Plate materialAISI 316 L stainless steel
Fittings materialAISI 316 L stainless steel
Water side fittingsG3/4
Freon side fittingsØ 12.8 mm
Brazing materialCopper 99.9%
Number of plates8 – 40
Measurements and weights
Length315 mm
Greater wheelbase278 mm
Length77 mm
Smaller wheelbase40 mm
Height(7 + 2.3 x N) mm*
Weight(0.322+ 0.074 x N) Kg*

*Data subject to tolerance.
