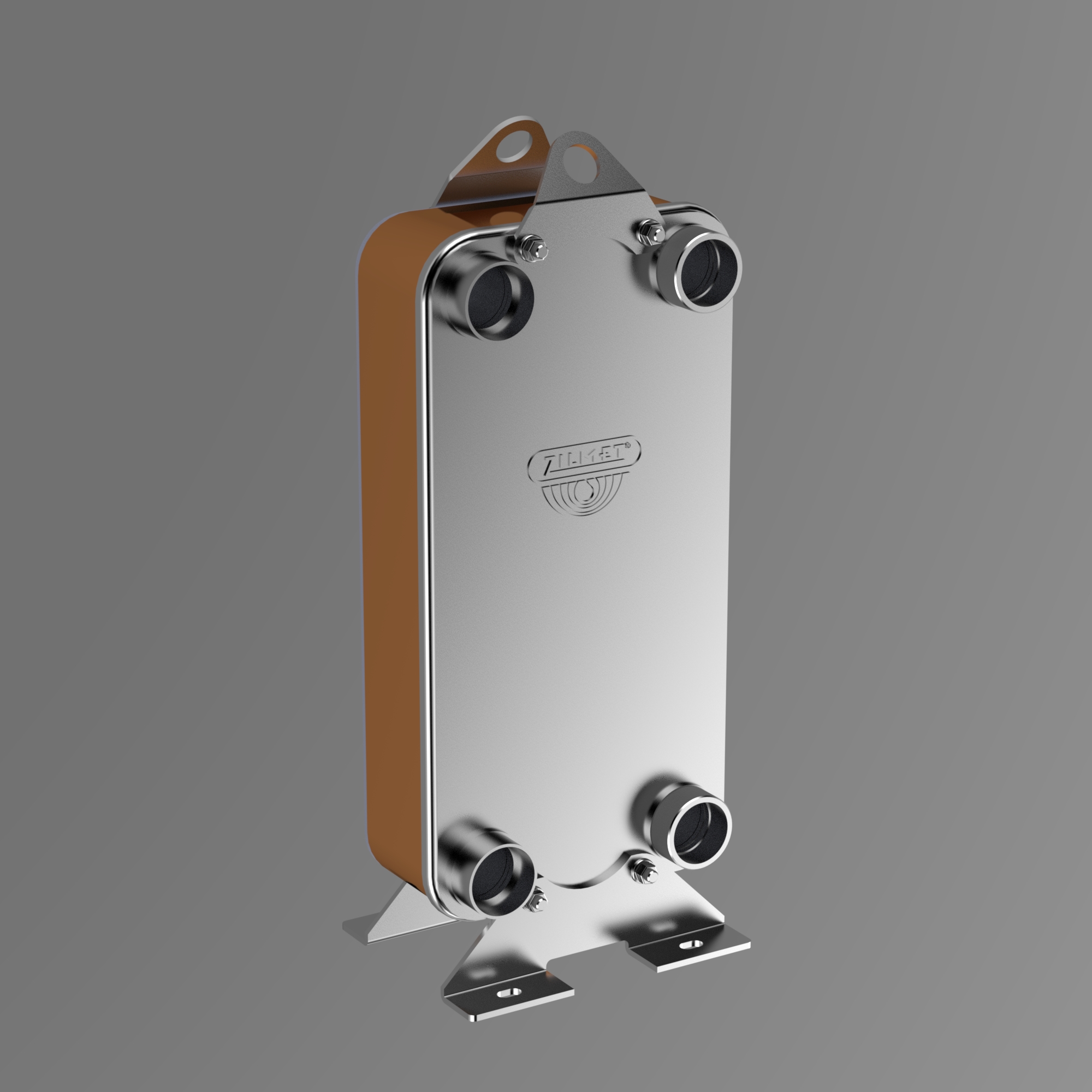

ZB 700

Technical features
Maximum operating pressure 30 bars
Maximum operating temperature-50°C / +200°C
Plate materialAISI 316 L stainless steel
Fittings materialAISI 316 stainless steel
Standard fittings4 x G2 1/2
Brazing materialCopper 99.9%
Number of plates40- 200
Measurements and weights
Length782 mm
Greater wheelbase665 mm
Length350 mm
Smaller wheelbase220 mm
Height(12 + 2.8 x N) mm*
Weight(16.1 + 0.86 x N) Kg*

*Data subject to tolerance.
