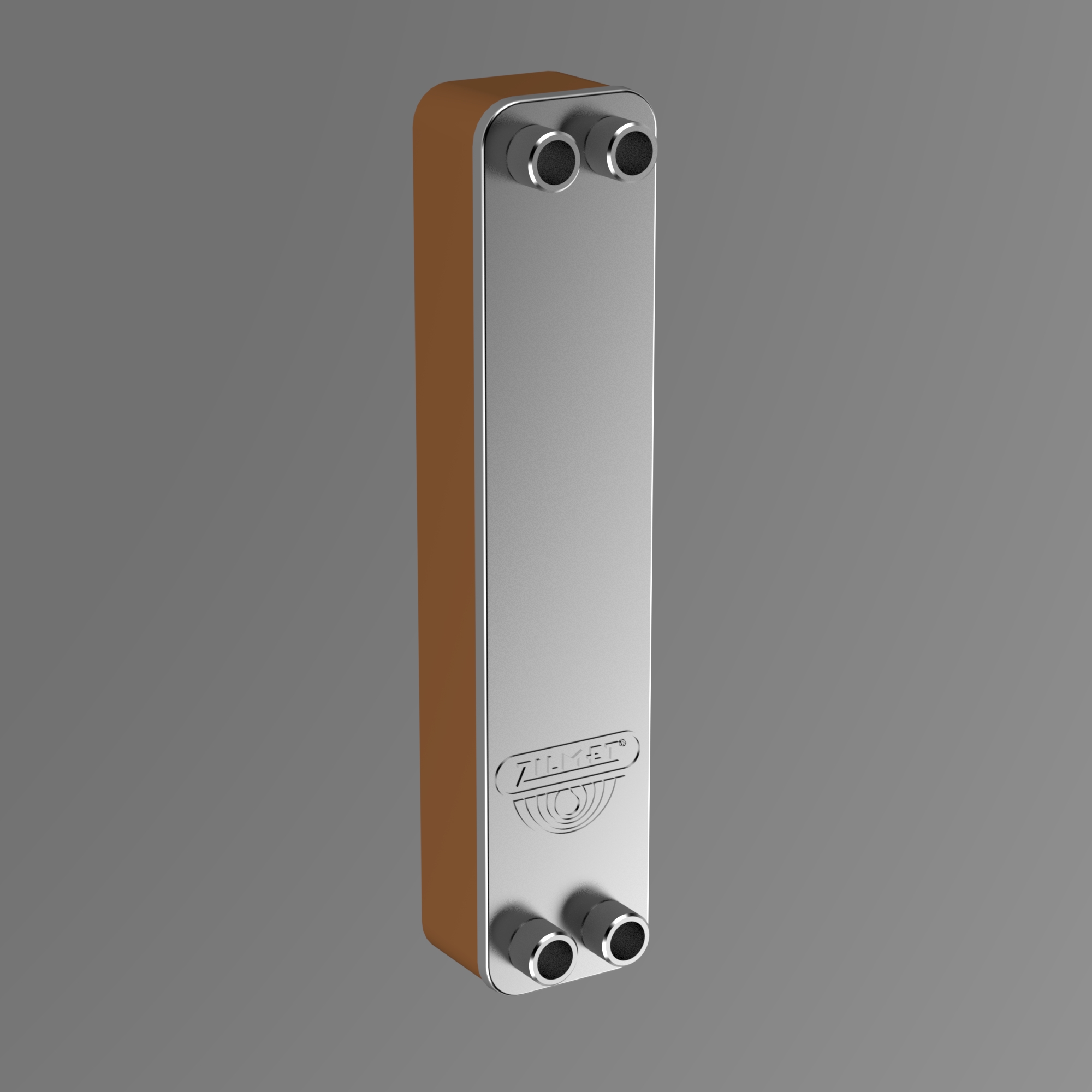

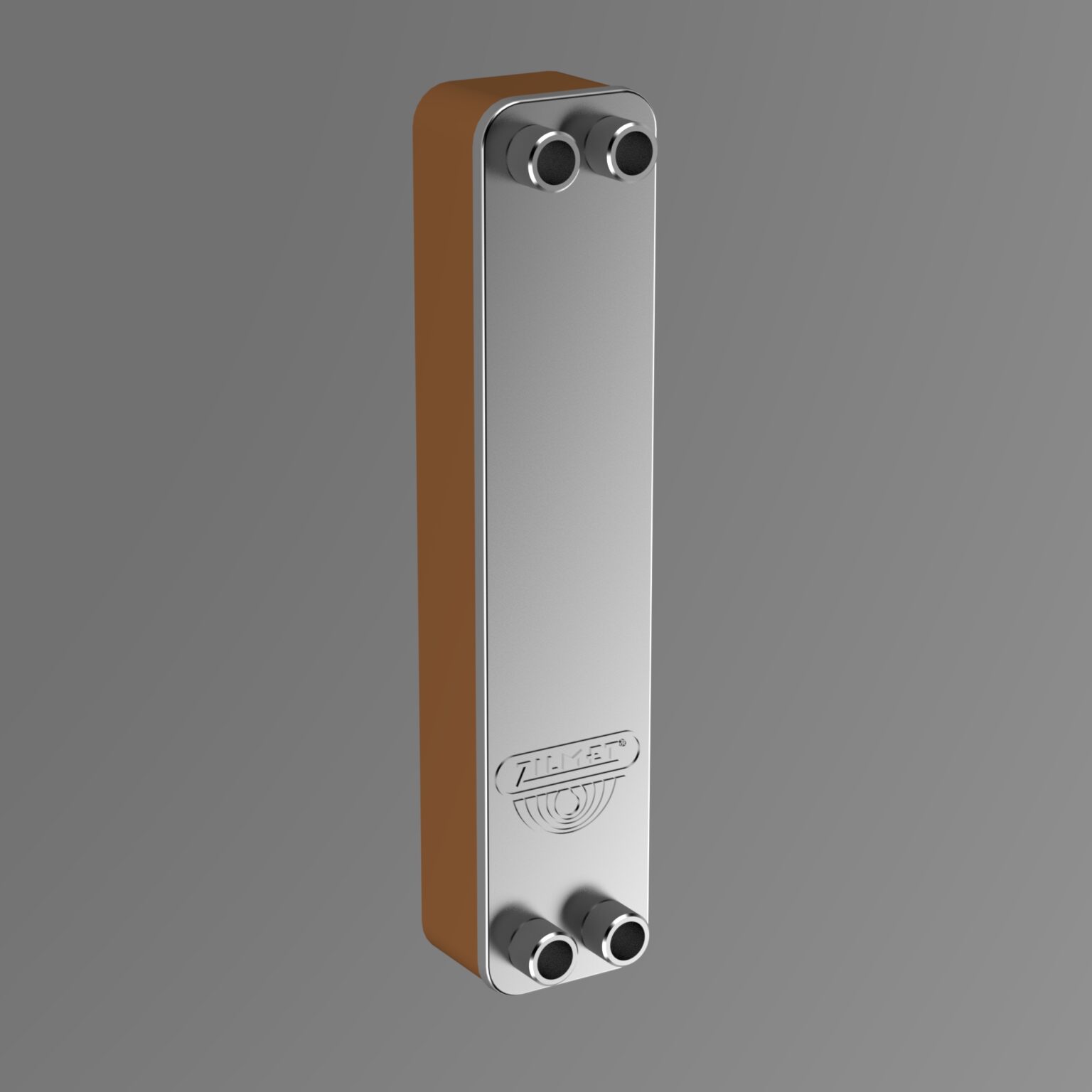

ZB 500

Technical features
Maximum operating pressure 30 bars
Maximum operating temperature-50°C / +200°C
Plate materialAISI 316 L stainless steel
Fittings materialAISI 316 stainless steel
Standard fittings4 x G1
Brazing materialCopper 99.9%
Number of plates10 – 80
Measurements and weights
Length526 mm
Greater wheelbase466 mm
Length115mm
Smaller wheelbase50 mm
Height(9 + 2.25 x N) mm*
Weight(2.12 + 0.225 x N) Kg*

*Data subject to tolerance.
