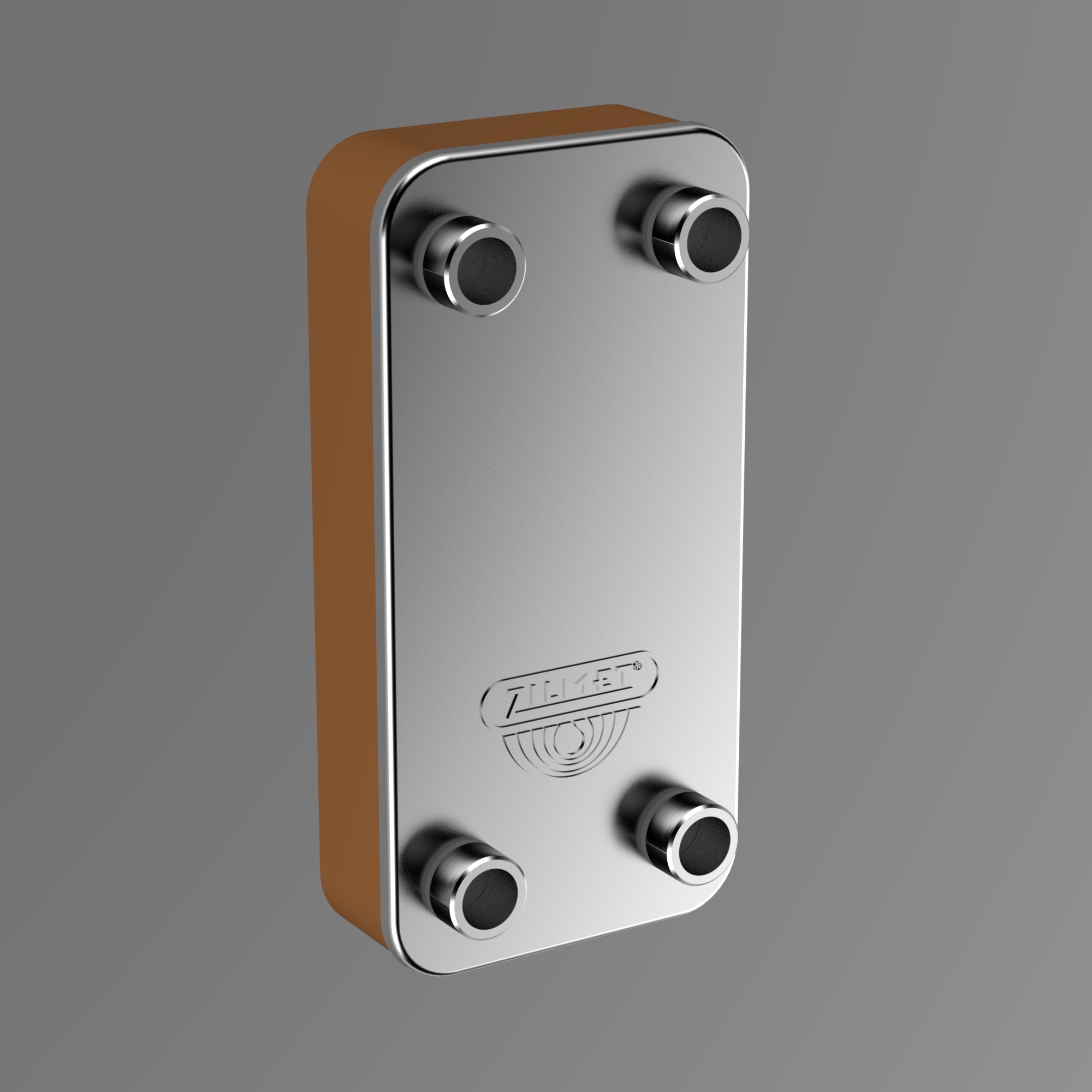

ZB 400

Technical features
Maximum operating pressure 30 bars
Maximum operating temperature-50°C / +200°C
Plate materialAISI 316 L stainless steel
Fittings materialAISI 316 stainless steel
Standard fittings4 x G1 1/4
Brazing materialCopper 99.9%
Number of plates10 – 80
Measurements and weights
Length390 mm
Greater wheelbase296mm
Length195mm
Smaller wheelbase120 mm
Height(9 + 2.1 x N) mm*
Weight(2.82 + 0.286 x N) Kg*

*Data subject to tolerance.
