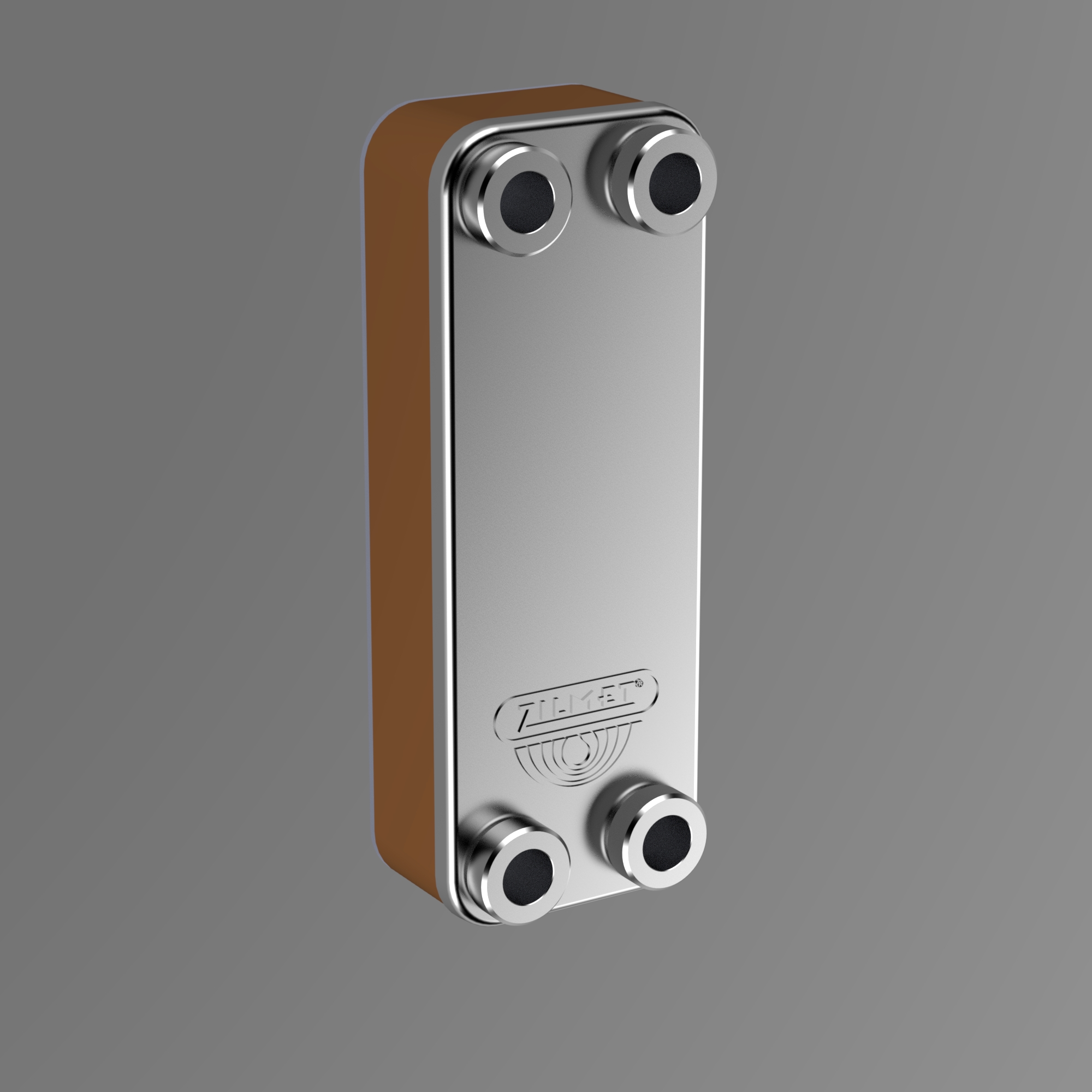

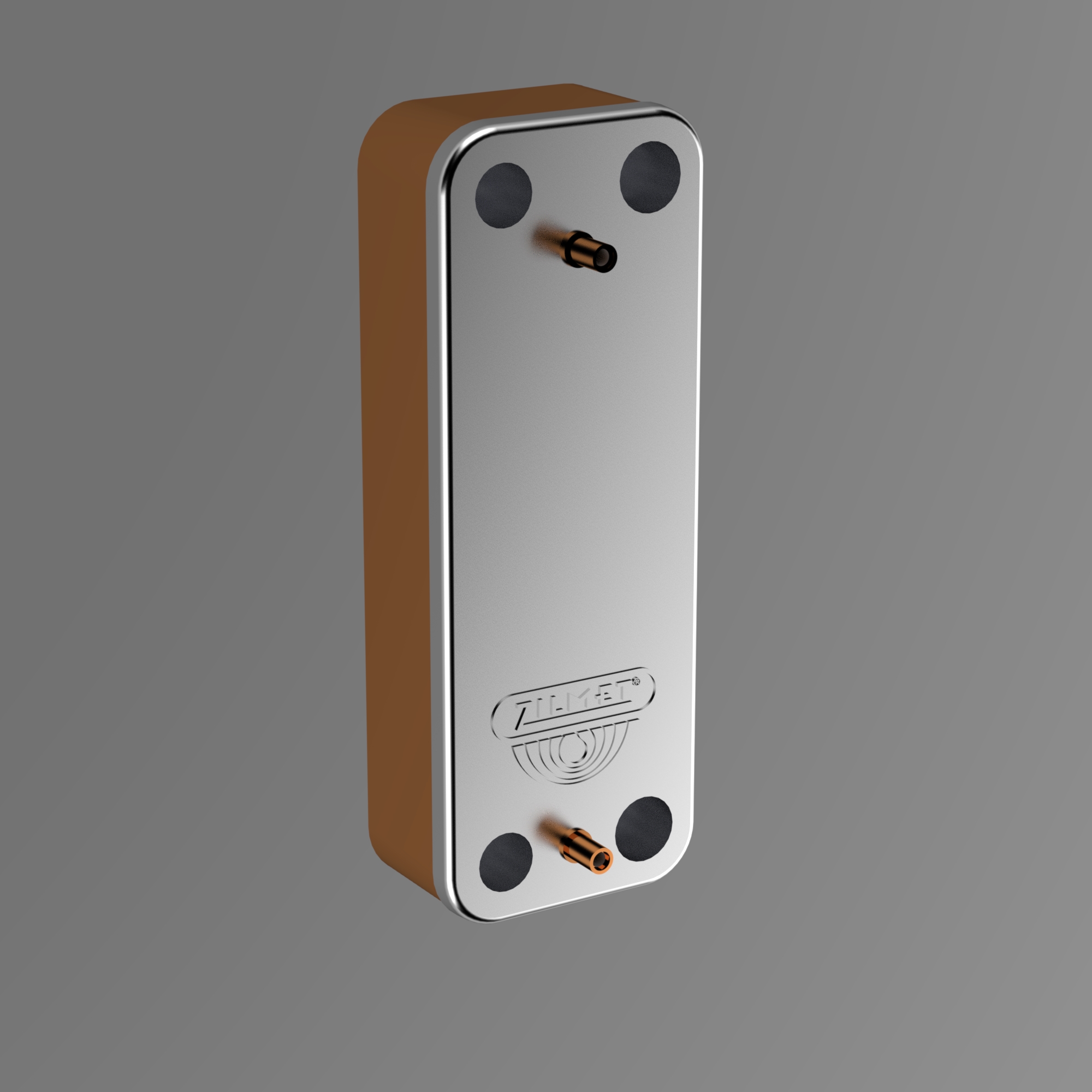

ZB 207

Technical features
Maximum operating pressure 8 bars
Maximum operating temperature-10°C / +120°C
Plate materialAISI 316 L stainless steel
Standard fitting materialAISI 316 stainless steel
Standard fittings4 x G3/4
Brazing materialCopper 99.9%
Number of plates8 – 40
Measurements and weights
Length207 mm
Greater wheelbase172mm
Length77 mm
Smaller wheelbase42mm
Height(7 + 2.3 x N) mm*
Weight(0.234 + 0.048 x N) Kg*

*Data subject to tolerance.
