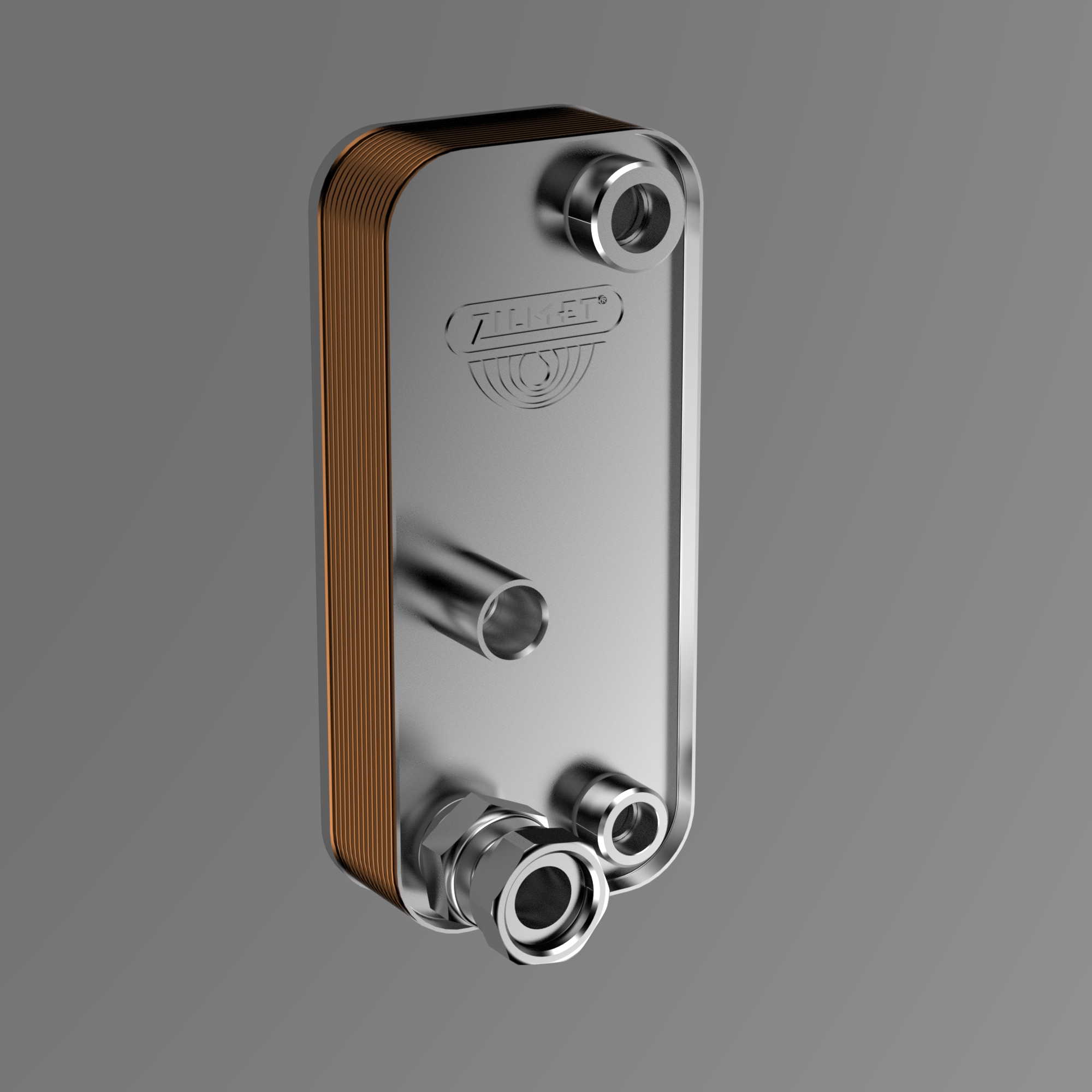

ZB 195

Technical features
Maximum operating pressure 8 bars
Maximum operating temperature-10°C / +120°C
Plate materialAISI 316 L stainless steel
Fittings materialAISI 316 stainless steel
Standard fittingsBy design
Brazing materialCopper 99.9%
Number of plates10 – 40
Measurements and weights
Length195mm
Greater wheelbase154 mm
Length88mm
Smaller wheelbase42mm
Height(7 + 2.3 x N) mm*
Weight(0.225 + 0.052 x N) Kg*

*Data subject to tolerance.
