| Technical features | |
|---|---|
| Maximum operating pressure | 10 bars |
| Operating temperature | -10/+99°C |
| PRESSIONE DI PRECARICA | 1.5 bar |
| CAPACITY | 100 L |
| ØD DIAMETER (mm) | 450 |
| H HEIGHT (mm) | 910 |
| E (mm) | 153 |
| P. MAX | 10 bars |
| Ø FITTING | 1″G |

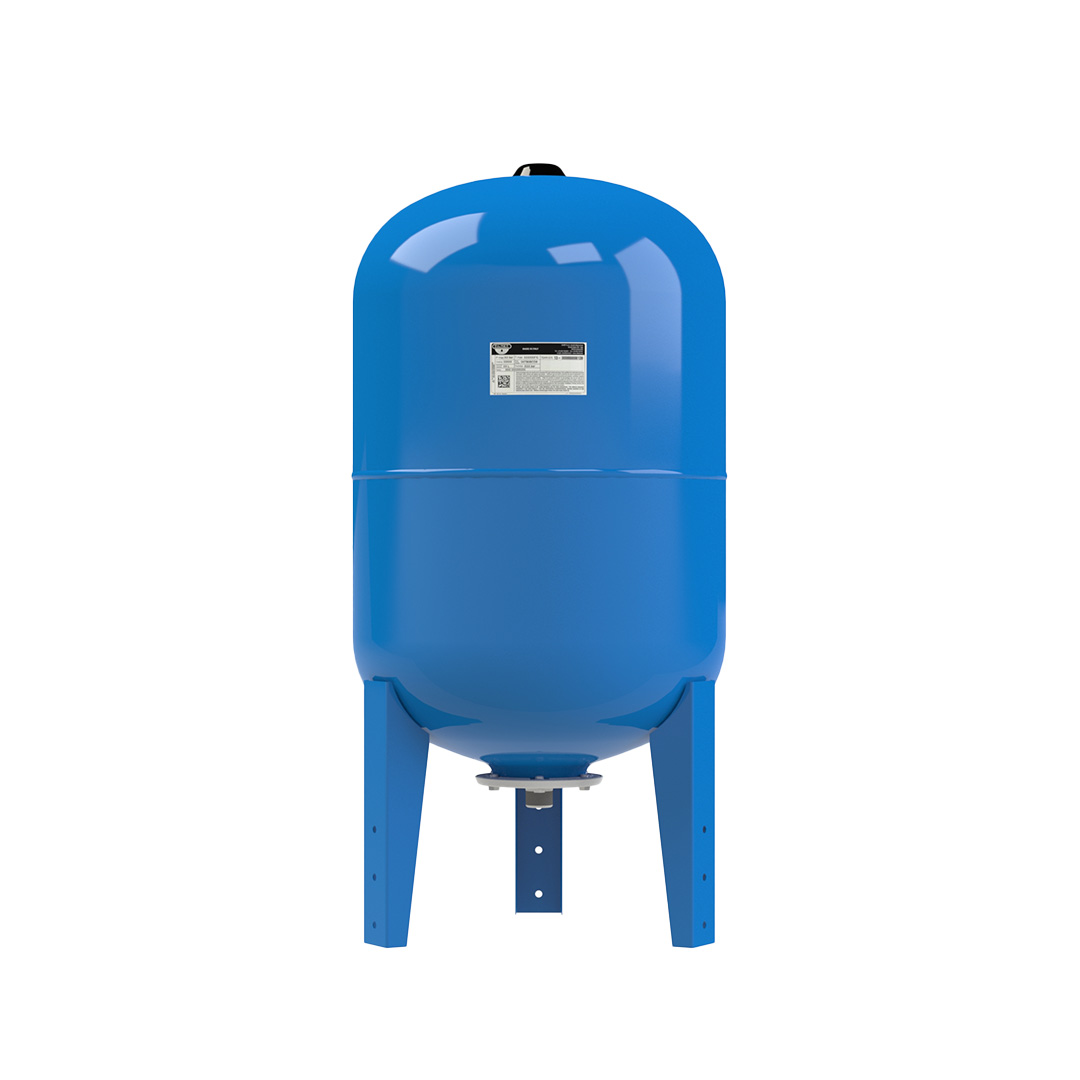

100 LITERS | ULTRA-PRO 100V Special
Code: 1100010020
ULTRA-PRO: autoclaves with interchangeable membrane for use with drinking water. Ideal for any modern installation and applicable to any type of pump. The useful capacity of the autoclave is far greater than that of normal tanks and therefore, with the same yield, the overall dimensions are smaller. An air cushion, separated from the water by the rubber membrane, keeps the autoclave constantly under pressure and therefore does not require a compressor. The autoclave can also be supplied with a stainless steel flange.
Approved according to PED 2014/68/EU, Wras, ACS regulations.
In this range, versions are available for the Italian market, for the European market and for the Extra-European market.
